Stainless Steel Braided Air Exhaust Tube Retrofit kit : VS020900AP , VT043600AP , VT043500AP ,VT046800AP , VT046900AP VT Campbell Hausfeld
We currently have 1 in stock.

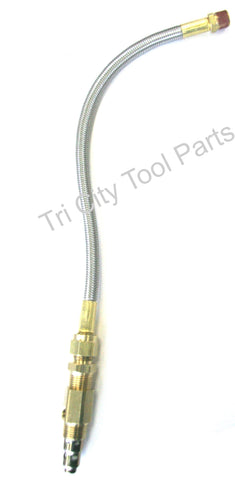

Campbell Hausfeld VT Air Compressor Stainless Steel Braided Exhaust Tube Retrofit kit
- Part # VT043/SS
- Replaces Part #'s: VT043300AP , VT043500AP , VT043600AP , VT046800AP , VT046900AP , VS020900AP
- and others...
- Pump Head to Tank.

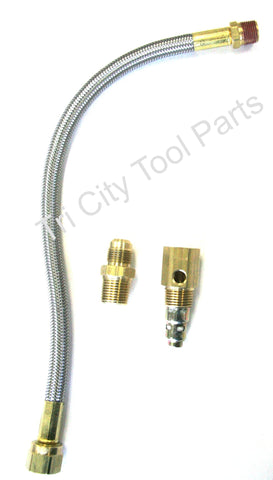

- Includes: SS Braided Exhaust Tube , Check Valve and fittings.
- Tube: 16" X 1/2" SS Braided Exhaust Tube 3/8" NPTM X Flare.
- Check Valve: 1/2" NPT outlet to tank.
- Flare Fitting X 1/2" NPTM to Check Valve W/ 1/8" NPTF unloader port.
- Instructions:
- Remove your existing exhaust tube, remove tube fitting from pump head, remove unloader tube & fitting from check valve and remove the check valve from the tank.
- Install braided exhaust tube into the pump head.
- Install unloader fitting from your original check valve into the new check valve.
- Install check valve into tank.
- Install flare fitting into the new check valve.
- Attach braided exhaust tube to flare fitting in check valve.
-
If you are unsure, please contact us us with your model and serial number and we will be happy to help.
