WL006800AP Stainless Steel Braided Air Exhaust Tube Upgrade kit WL611100 , WL6116

Campbell Hausfeld WL6111 Air Compressor Stainless Steel Braided Exhaust Tube Upgrade kit

• Part # WL68-RFK

• Replaces Part #': WL006800AP

• WL611100 , WL611102 , WL611103 . WL6112 , WL6114 , WL6115 , WL6116
• And others.

• Pump Head to Tank.

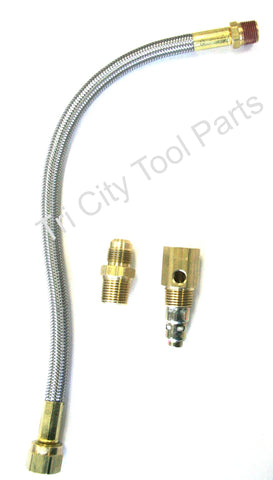

• Includes: SS Braided Exhaust Tube , Check Valve and fittings.
• Tube: 16" X 1/2" SS Braided Exhaust Tube 3/8" NPTM X Flare.
• Check Valve: 1/2" NPT outlet to tank.
• Flare Fitting X 1/2" NPTM to Check Valve W/ 1/8" NPTF unloader port.

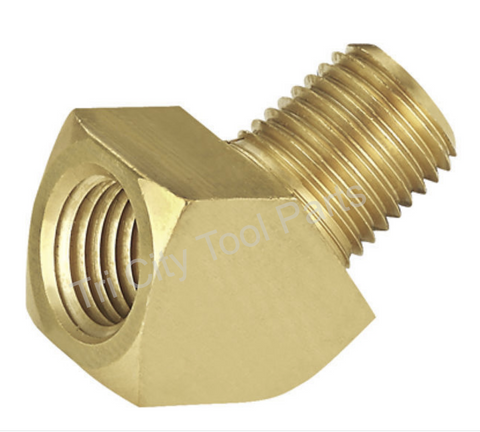

• 3/8"M X 3/8"F 45 Degree Pump Head Fitting

• Instructions:
• Remove your existing exhaust tube, remove tube fitting from pump head, remove unloader tube & fitting from check valve and remove the check valve from the tank.
• Install 3/8" X 3/8 45 Degree fitting in pump head.
• Install braided exhaust tube into the 45 degree fitting in head.
• Install unloader fitting from your original check valve into the new check valve.
• Install the new safety valve included in this kit into the other port on the check valve.

• Install check valve into tank.
• Install flare fitting into the new check valve.
• Attach braided exhaust tube to flare fitting in check valve.

• If you are unsure, please contact us us with your model and serial number and we will be happy to help.
