Stainless Steel Braided Air Exhaust Tube Retrofit kit : 145-0028 Craftsman / Kabolt / Powermate

Sanborn / Craftsman Air Compressor Stainless Steel Braided Exhaust Tube Retrofit kit 145-0028

• Part # : 145-0028RFK

• Replaces Part #'s: 145-0028

• Pump Head to Tank.
• Includes: SS Braided Exhaust Tube , Check Valve and fittings.

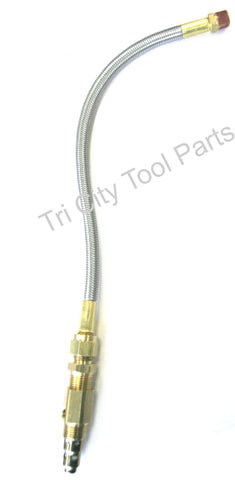

• 1)  Tube: 16" X 1/2" SS Braided Exhaust Tube 3/8" NPTM X Flare.
• 1)  Check Valve: 1/2" NPT outlet to tank W/ 1/8" NPT unloader port , 1/2" npt inlet..
• 1)  Flare Fitting X 1/2" NPT to check valve
• 1)  1/2" NPT male to 3/8" NPT female head connection.

• Instructions:
• Remove your existing exhaust tube, remove tube fitting from pump head, remove unloader tube & fitting from check valve and remove the check valve from the tank.

• Install 1/2 X 3/8 adaptor into the pump head.
• Install braided exhaust tube into the pump head fitting.
• Install unloader fitting from your original check valve into the new check valve.
• Install check valve into tank.
• Install flare fitting into the new check valve.
• Attach braided exhaust tube to flare fitting in check valve.
• ** If your unit's unloader valve does not connect to the check valve, install the 1/8" plug into the check valve open port.

• If you have any questions, please contact us for assistance.
