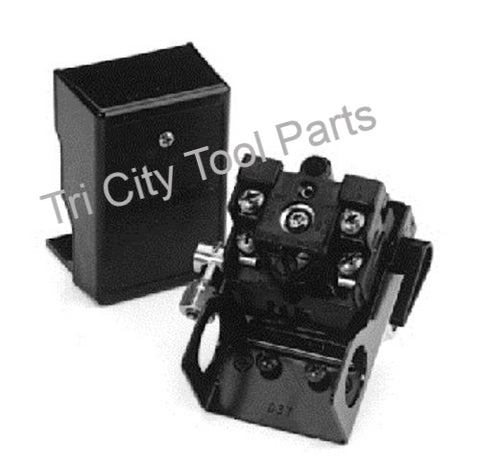

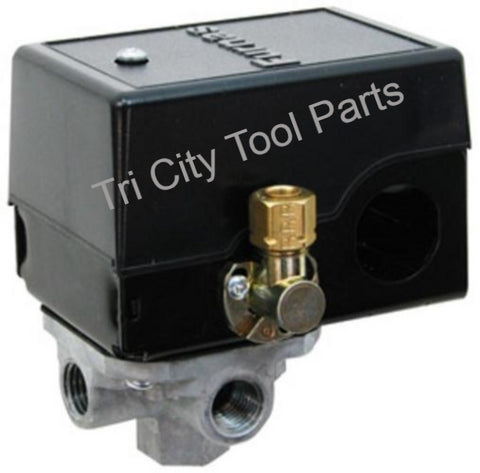

Z-D PS3535 Porter Cable Air Compressor Pressure Switch

  • Z-D PS3535 Porter Cable Air Compressor Pressure Switch
  • Z-D PS3535 Porter Cable Air Compressor Pressure Switch

$ 79.98

We currently have 2 in stock.

OEM Air Compressor Pressure Switch

  • Part No. ZD-PS3535

  • Replaces Part #'s: Z-AC-0746, Z-AC-0747 ,  Z-AC-0809 , Z-D21892 , Z-D28777
  • Furnas Electric / Hubble 4 Port Pressure Switch 125/95 PSI
  • 4 Port Manifold Provides a means for easy mounting of relief valves & gauges
  • 1/4”  Female NPT standard manifold ports
  • Cuts in at 95psi and out at 125psi
  • 24 AMP 120V or 240V Applications.
  • Lever on/off switch.
    • Equipped with unloader valve that can be Rotated into 8 Positions, Which Prevents the Compressor from Starting Under Loa
    • Silver Cad-Oxide Brazed contacts provided superior performance and extend the life of the switch



    • If you are unsure this will fit your application, please send us your model and type number and we will be happy to help.





    Type Air Compressors
    Vendor Furnas
    Tags air-compressors, craftsman, furnas, porter-cable
